11/40 System

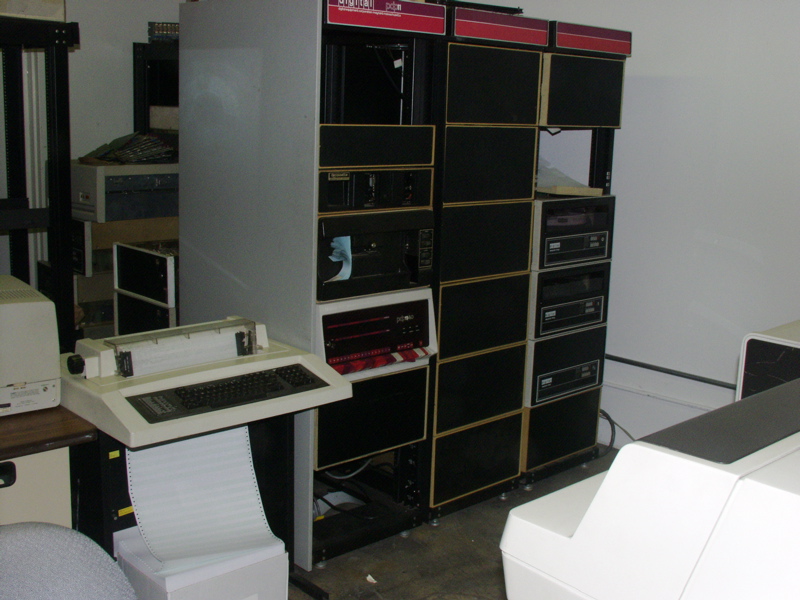

This 11/40 is setup to be as close to a maximum configuration as
possible. It is currently contained in 3 H960 6-foot racks.
The current configuration is:
- 11/40 CPU
- MMU
- EIS
- FIS
- 128KW (256KB) of core in 4 32KW MM11-U memory subsystems
- 2 DL11 SLU
- 1 RL11 controller
- 1 RK11 controller
Peripherals currently attached:
- 2 RK05J disk drive (2.5MB/ea)
- 1 RK05F disk drive (seen as 2 RK05J drives)
- LA120 Decwriter III (console)
Soon to be attached:
- PC05 paper tape reader/punch.
11/40
